| Year | 2024 (new) |
|---|---|
| Chassis | Knapen Trailers BV. |
| Body | Knapen Trailers BV. |
| Volume | 130 CuYds (99.4m3) |
| Weight | 8150kgs |
| Stock No. | SN1111 |
|---|---|
| Type | Biomass Moving Floor Trailer |
| Chassis | Knapen |
| Body | Knapen |
| Model | 130 Biomass Dawbarn 10 mm |
| Year | 2024 (new) |
| Documents |  Parts Manual |
| eCO2 | 75000kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2024 |
| Weight | 8150kgs |
|---|---|
| Type | Steel Sub-Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SBS Disc |
| ABS/EBS | WABCO EBS-E |
| Wheels | Steel |
| Axles | 3x SAF BI9 22S SBS |
| Volume | 130 CuYds (99.4m3) |
|---|---|
| Door | Barn Door 50:50 |
| Catwalk |  |
| Floor System | Cargo CF500SL-C |
| Floor Slats | 21x 10mm Smooth |
| Floor Parts | SLC |
| Headboard | Moving |
| Chassis | Galvanised |
| Body | White RAL 9010 |
| Cover | Seawolf Blue (Grey) Dawbarn Hydraulic Roll Over Sheet Hydroclear |
130 cuyd Knapen Aluminium moving floor - 4.2 meters over the side
Taper frame - trailer gets taller towards the back allowing product to exit more cleanly
Slightly larger volume than the STANDARD european floor and with the thicker 10 mm floor and extra floor bearers mean that this is more able to do the BIOMASS, Broken wood, WEE part of the market. The flat floor 21 planks means you can also load pallets, forkliftable products etc. For heavier work we recommend the Knapen RECYCLING Spec trailer.
We also offer 120yd and 140yd variants and even bigger if required at bespoke heights and lengths.
10 mm floor thickness as standard (our competition often try and sell the 6 mm or 8 mm)

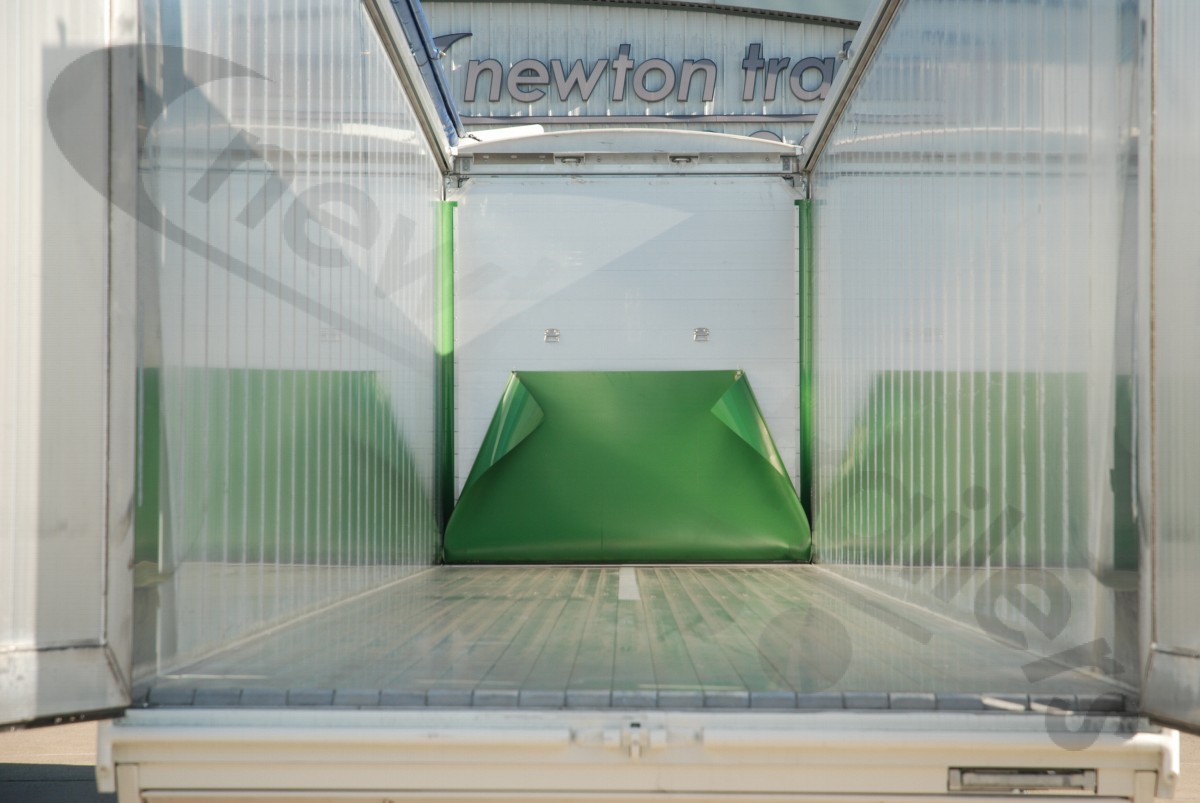

Cargo Floor CF500 SLC with wired remote control
Triaxle on Air
SAF axles Off road CD version
Steel wheels (options for alloys)
Steel galvanised chassis with a 10 year anti-corrosion warranty
4 extra cross members at rear of trailer for forklift loading
Small triangular wear plates both sides to prevent forklift loading damage
plastic Tool box
Air operated rear door safety lock
UK reinforced sledge plate - to assist coupling and uncoupling.
UK domed Dawbarn Hydroclear Auto-sheet system (or manual - to order)
