Description

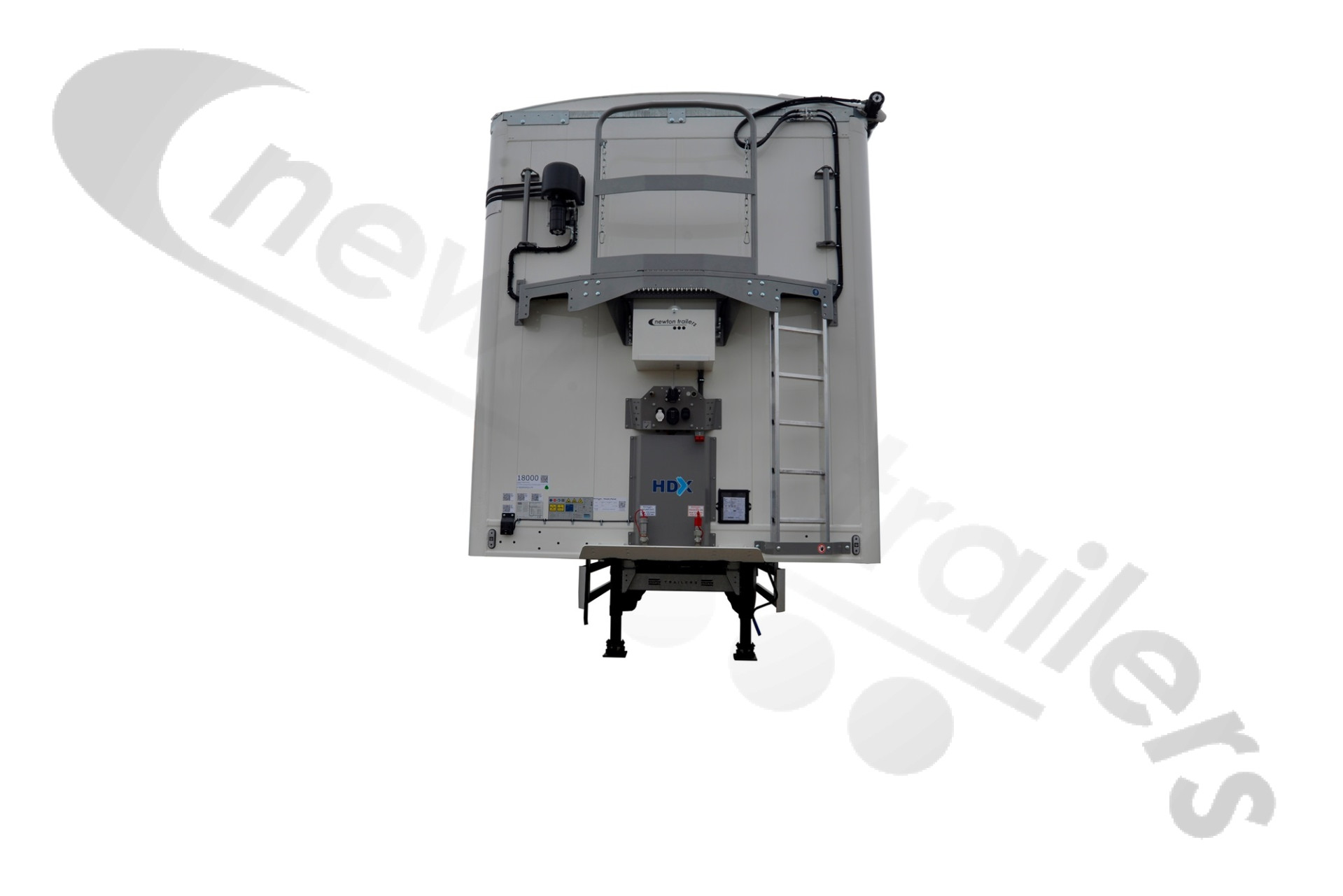

Knapen RECYCLING Waste Walking Floor

This is our RECYCLING Waste walking floor product. Floors are definitely a case of 'Horses for Courses'. Choose the right spec trailer for the work you do. We have optimised this RECYCLING trailer to take abuse at the heavier end of the market. It has features that move it up from a BIOMASS spec into the more difficult products you might carry when RECYCLING. The chassis and sidewall construction is a culmination of 30 years experiecnce building for the Eastern European waste sector at 55 tonnes.  The floor is the XHDI - extra heavy duty impact system - will take larger lumps - more abrasive materials - larger wood items, black bag and household recycling products. Though not recommended for everyday work on the landfill (we do the TITAN walking floor option for that) - it will withstand some landfill when the MERF occasionally breaks down. This trailer has a large steel box section bolted to the of all four sides of the box and can take those knocks that inevitably come from loading shovels. other sizes are available. Too heavy for you then choose the BIOMASS spec Knapen, not strong enough then choose the TITAN Armageddon specification trailer.

127 cuyd 4.2m over the side

K100 HDX Subframe/Chassis with 8 additional cross-members and all cross-members thicker by design than STANDARD & BIOMASS floors. This Subframe/chassis was originally designed to cope with the heavy use and poor roads of the Baltic states. It features a Heavy Duty Steel lead up plate and Kingpin rated at 18 tonnes.

Cargo Floor 15 plank XHDI (Extra Heavy Duty Impact) system. 10mm - 22mm of aluminium on the planks

BPW Axles and BPW Drum brakes

Galvanised chassis with 10 year anti corrosion warranty

6 meters of 2 m full height 4 mm wear plates and 7 meters of 1 m height 4 mm wear plates

Steel capped top rails 600 mm x 600 mm x 6 mm steel box capping both sides, front and rear attached by tabs and bolts.

Extra heavy duty roof supports

Dawbarn Hydroclear automatic sheet system

Moving internal headboard

Towing eye in case you have been a bit cheeky

Rear door 50:50 split with double locks per door (hydraulic door variant available to order) with an air safety door lock

Doube front catwalk

Knapen Waste Specification Walking Floor
