7371001 Cargo Floor Ram Cylinder CF500 No1 with Fastening Materials

n1000324.pdf

n1000324.pdf

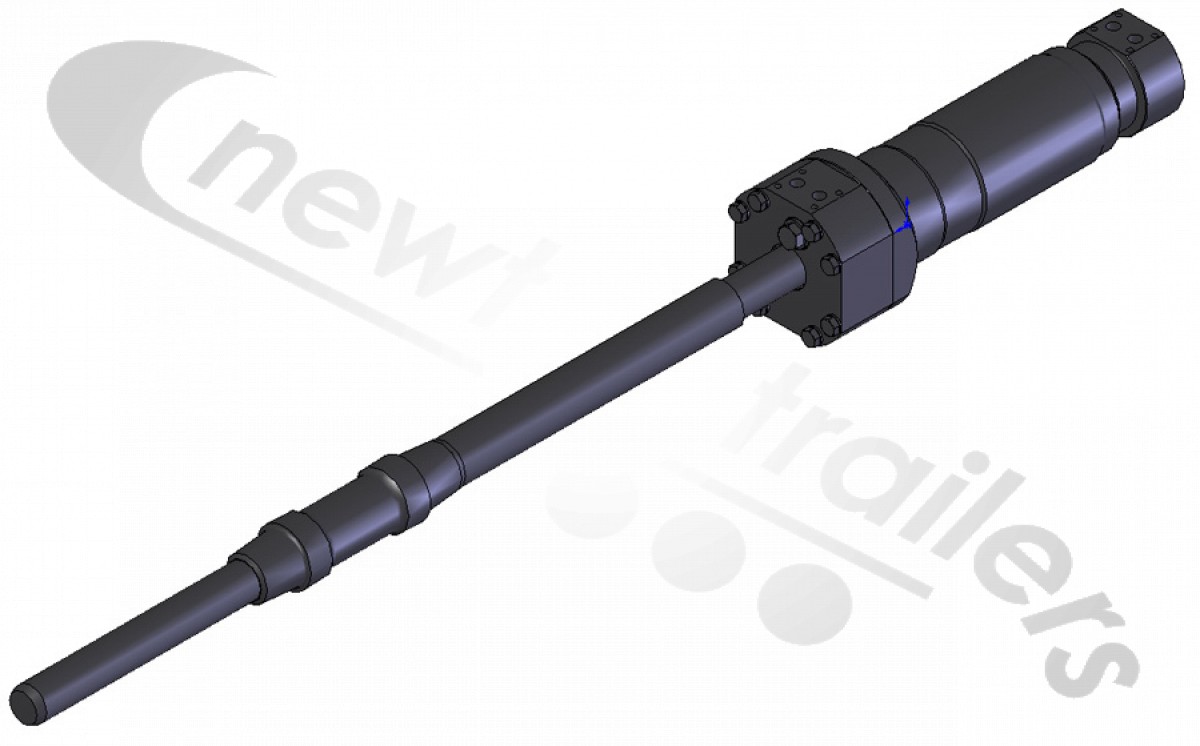

Cargo Floor Ram Cylinder CF500 No1 with Fastening Materials

Cargo Floor Ram Cylinder CF500 No 1 With Fastening Materials

Suits:
CF500 SL1
CF500 SL2

(There are three cylinders in total per system). All are different and all are sold separately.

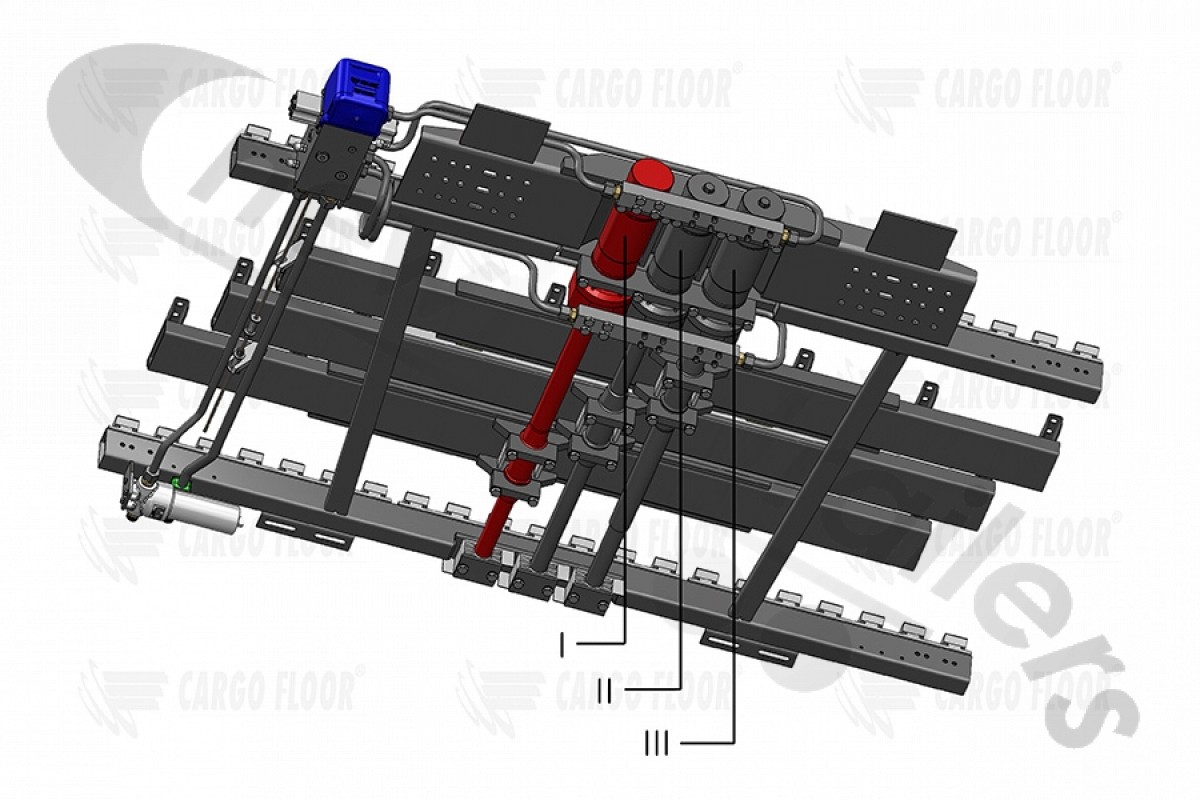

In traffic direction from L to R

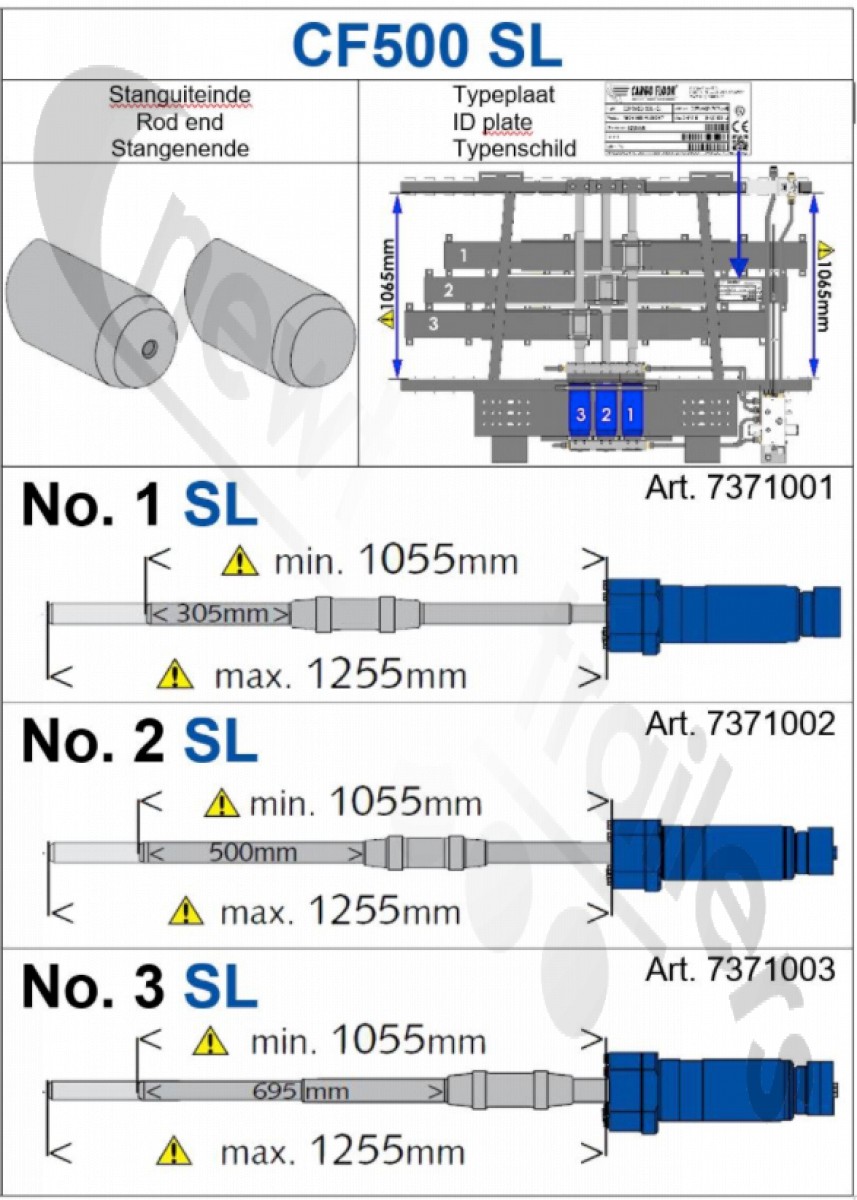

We would like to point out that there are two types of CF500 cylinder that are almost identical; CF500 SL (long version) and the CF500 SLC (short version).

Because these are not interchangeable it is important that you always check - before ordering or mounting.

The 3rd Picture shows how you how to measure them in the Cargo Floor drive system.

Alternate Part Number SP 7051
