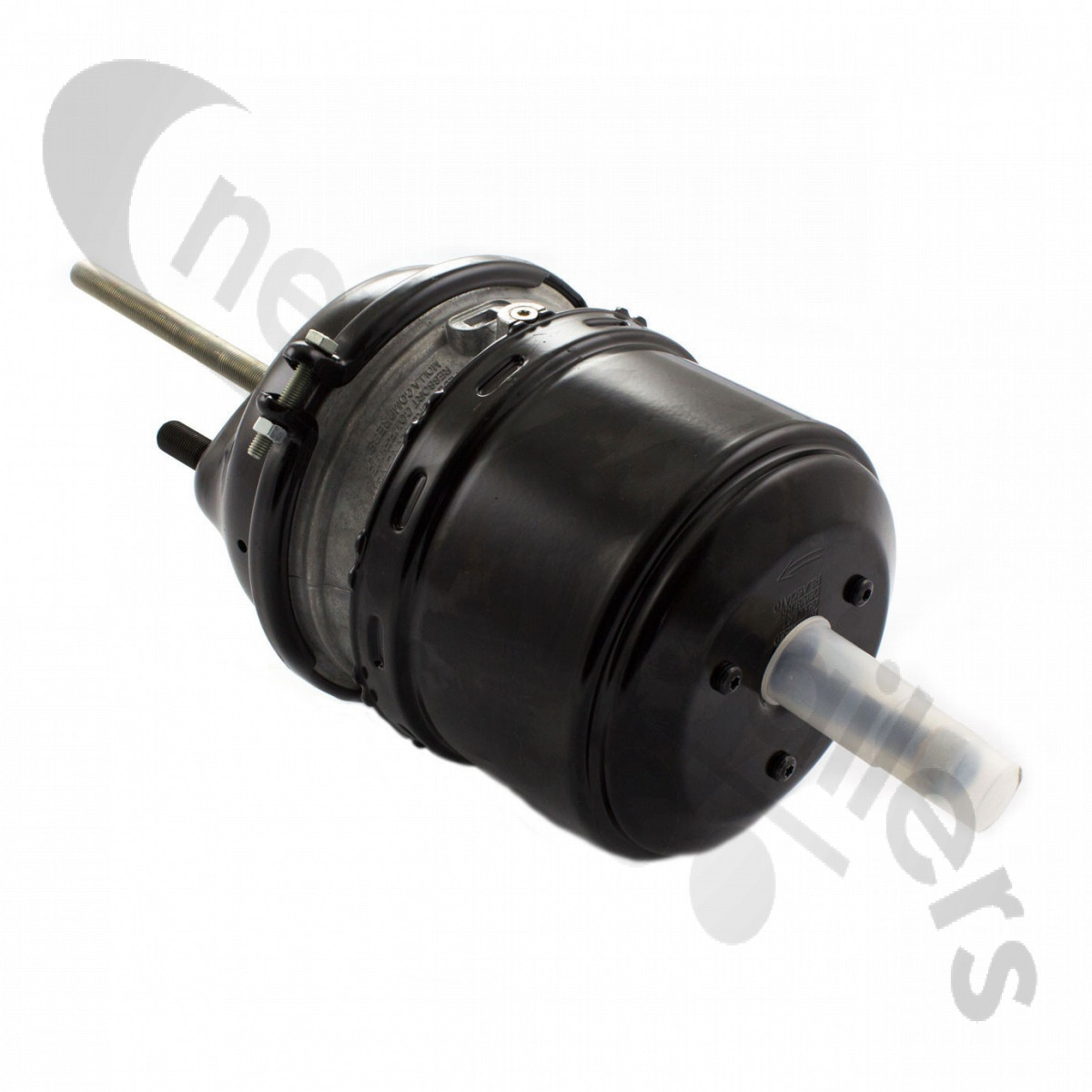

| Spring Brake (Cam Brake) 925 492 208 0 Technical Sheet |
| 1. |
Max. operating pressure: 10.2/8.5 bar |
| 2. |
Type: 30/30 IBV |
| 3. |
Stroke: 65/65 |
| 4. |
Output force S: 11500N/20mm |
| 5. |
Release pressure: 5.1 bar |
| 6. |
Output force D: 12000N / 6.5 bar |
| 7. |
Yoke: welded |
| 8. |
Clevis pins: without |
| 9. |
Port threads: M 16x1.5 |
| 10. |
with fording ability: no |
| 11. |
Push-rod length: 200 |
| 12. |
Thread length: 200 |
| 13. |
Angle a: -135° |
| 14. |
Angle b: 90° |
| 15. |
Angle d: - |
| 16. |
Angle c: 0° |
| 17. |
Distance between bolts: 120.7 |
| 18. |
Bolt threads: M 16x1.5 |
| 19. |
Bolt lengths: 43 |
| 20. |
Sealing: Disc |
| 21. |
Return-spring force: 160 |
| 22. |
Over stroke: no |
