Print Quotation For 1x Knapen Agricultural 90cu yd 26 cu meter K600 BAGGED Liquid-X-Liner Print

Quotation For 1x Knapen Agricultural 90cu yd 26 cu meter K600 BAGGED Liquid-X-Liner

Newton Trailers Limited




Monday, 23rd December 2024

Dear Customer,

Ref: SN1177

Thank you for the opportunity to quote for your new, Knapen 1.

Knapen are Europe’s largest moving floor trailer manufacturer based out of Holland.  They have been dedicated to making the strongest floors for 40 years. Knapen are fully owned by Krone. Krone are one of the world's biggest agricultural sector trailer suppliers. This agricultural moving floor is aimed specifically at moving silage, maize, agricultural products and feedstocks into Anaerobic Digestion Plants. The plant can then move the biodigestate liquid away in the bagged element of the trailer. So no need for a tanker and you can load both directions into and away from the AD plant. This has efficiency savings - one trailer to do both jobs and also vehicle movement reduction into a site.

Why buy a trailer from Newton? We are a family owned and run business – trading since 1962 and are now the largest dealers of tipping trailers and moving floors in the UK and Eire. At least this indicates we should know our stuff by now. We get to design and also when needed to modify our supplier’s products to suit the needs of our customers in the UK market.



I look forward to hearing from you.

Yours sincerely,



Newton Trailers Limited

Quotation For 1x Knapen Agricultural 90cu yd 26 cu meter K600 BAGGED Liquid-X-Liner

Prepared for SN1177

DIMENSIONS

Trailer Volume: ± 90 CuYds (68.8m3)

Bagged Volume: ± 26 cu mtrs

Length inside: ± 11060 mm

Width inside:  ± 2.480 mm

Width outside: ± 2.550 mm

Height inside front: ± 2565 mm

Height inside rear:  ± 2795 mm

Trailer Unladen Weight: ± 7525 kg plus options

USES

Suitable for agricultural bulk loads: silage, maize, wood chip, fertilizer peat & palletised loads; and in bagged tanker mode capable of moving liquid biodigestate. 6 axle UK 44T operation on road & used with Manufacturers' Safety Instruction.

CHASSIS

Sub-Frame constructed in Alloy.

  • Self-supporting auxillary frame. Zinc galvanised
  • Under-run bar - alloy extrusion design.
  • Large Knapen mud flap beneath the rear under run bar.
  • Aluminium side protection, folding in accordance with EU regulations.
  • Ladder to access rear of trailer.
  • 6 x semicircular plastic mudguards, with Knapen mud flaps fitted with anti-spray mats on the third axle

KINGPIN

  • 2” connecting pin, fitted in a 10 mm thick steel sledge plate of St 52-3.
  • Sledge plate area designed for 18,000 kg operation.

LANDING LEGS

  • Landing legs steel with compensating feet.

AXLE AND SUSPENSIONS

  • 3 x SAF - 9-tonne, SAF intradisc+ integral CD (OFF ROAD) version ET-120* (* unless sales option varied).
  • Wheelbase 6,750 mm, axle spacing 1,310 - 1,310 mm

WHEELS AND TYRES

  • 6 x Krone Tyres 385/65 R22.5" or Premium tyres.
  • 6 x offset Steel rims*  (*unless sales option varied) 22.5 x 385  10-holes.

BRAKES

  • 2 line air brakes to current EU regulations.
  • Load sensed system.
  • Electronic braking system WABCO, EBS-E – with ON BOARD WEIGHING CAPABILITY with compatible tractor units – ask truck manufacturer for compatibility.
  • Parking brake through spring brakes.
  • Roll stability activitated.
  • Alloy air tanks.

ELECTRICS

  • 24-Volt Aspöck system as well as 2x7 pin (ISO 1185/DIN 3731) and 1x15 pin (DIN 72570) connections
  • 2 piece Aspöck 7- chamber rear light clusters
  • Orange side marker LED light.

BODY

SIDEWALLS

  • Sidewall planks 500 mm wide, 30 mm thick completely seam welded full height internally.
  • Inside body wall thickness 2.5mm.
  • Special top-rail profile incorporating internal track for sliding headboard.

Front Headboard

  •  Plank wall front headboard, fully seam welded inside.
  • catwalk All dimensions to comply with EU regulations on trailer length.
  • Air - (ISO 1728) and electrical connections fitted centrally approx 750 mm up.
  • Front Man door Access RIGHT SIDE
  • Reinforced Front Headboard
  • Front plate 1000 mm modified under the moving floor
  • Coupling Plate Construction modified (150 mm lower) to allow tubes running above the rubbing plate construction.

BACK DOOR

  • 50:50 split barn doors with double rubber seals. Steel header bar fixed. Option single piece hydraulic door
  • 2 stainless steel locking bar per door, new and improved larger door profiles for more strength,  larger locking handles for drivers ease.
  • Secondary air lock at the base of the doors. Control on the offside.

MOVING FLOOR SYSTEM

  • Cargo CF500SL-C, electrical operation (E-Control).
  • 21 plank system with Smooth 6 mm thick aluminium floor planks.
  • Full width PVC internal floor profile.
  • Control box is located on the right of the chassis, immediately behind the 3rd axle. Remote operation by means of a hand control with wander lead.
  • Oil temperature gauge with overheating protection for floor system.

HYDRAULICS

  • 20 mm Ø pressure pipe on the left, 25mm Ø return pipe on the right.
  • Holmbury IA25-F-16G-HO9 ISO A coupling on the return
  • Holmbury IA25-M-16G-H09 ISO A coupling on the flow

Moving Internal Headboard Construction

  • Full aluminium moving headboard. Fitted with floor mat at base and flaps either side.  Chariots fitted with brushes for top rail clear-out.  We make front headboard aperture provision for fitting of Keith Kleen system headboard retraction if requested as an option.

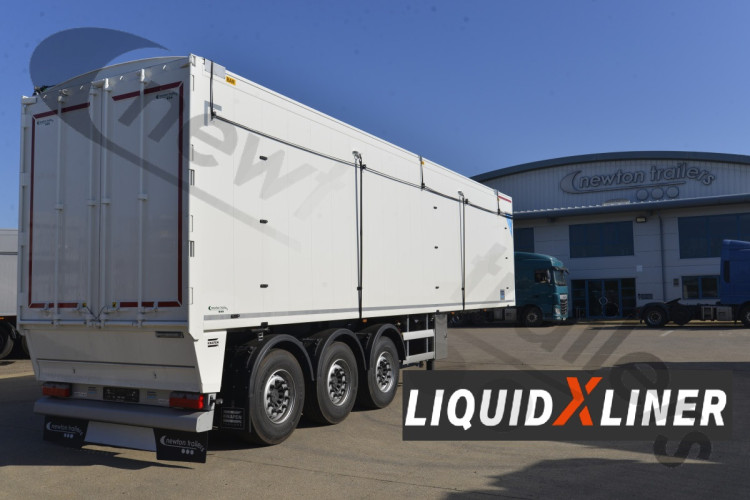

LIQUID X-LINER

Exeler Fahrzeugbau of Germany are the bagged liner secondary manufacturer. They make the LIQUID-X-LINER Tank System.

Volume: ca 26 m3. This will vary if the body length is option varied and will require recalculation.

1 x Flexible Tank PVC coated material (1,250g/m2). Temperatur range - 30 to +70 C. Chemical resistance to slurry, ammonium nitrate a.s.o. 1 x slurry connection right and left between loading module and 1st axle, with 6" quick coupling and pressure air connection for emptying.

Connecting module included in stainless steel box

1 x Stainless steel tubes on both sides. Tubes from connectoin box, to pump and up to flexible tank are made in stainless steel. Stainless stee tube to flexible tank is closeable with slurry valve on both sides.

1 x movable wall/headboard separates flexible tank system and trough, with included service door. Moving Internal Headboard is moving with rolling carriage in the trailer body top rail. Wall is lockable in parking position.

1 x reel for flexible tank. Hydraulic driven reel, mounted onto the Moving Internal Headboard

1 x reel for hydraulic tubes to allow rolling up of the hydraulic tubes

1 x stainless steel expansion tank, volume ca 200 liters, with level gauge, and 3 inch overflow tube

1 x working light - 1 piece at inner front side, 2 pieces right and left, at loading module 2 pieces right and left at slurry connection. Switchable with switch, left side, at the front of the trailer

1 x fresh water tank, ca 40 liters of water, fixed between the axles, with water connection right and left next to connection boxes.

1 x hydraulic connection, 2 tubes - pressure out, pressure reverse Please inform us of your type or fabrication of the connection you are connecting to at site.

1 x operation neutral position and working direction of slurry pump and flexible tank reel. Operable from working post of the moving floor, with 2 handles

1 x hydraulic control block for slurry pump and flexible tank reel, operable by manual handles at the working position of the moving floor

1 x valve for selecting moving floor/ X liner. Hydraulic block valve for selecting moving floor or LIQUID-X-LINER system.

1 x slurry pump,VOGELSANG FX 116-360 insensitive for dry running self sucking both sides working direction piston, bearing on bothe sides with renewable plates, synchronous gear, Hydraulic motor OMS 160, output 4,000 liters/minute, weight 145kg



WEIGHER EQUIPMENT

  • NONE SUPPLIED BUT: Electronic braking system WABCO EBS – with ON BOARD WEIGHING CAPABILITY with compatible tractor units – ask truck manufacturer for compatibility.

SHEET OR COVER SYSTEM

Dawbarn, Hydraulic, Roll Over Sheet Hydroclear sheet system (2 x 2 weave), with standard 150mm hood rise (*unless sales option VARIED).

Sheet attached with KADA sheet fittings (manual sheet only)/ Sheet attached with aluminium batten strip fittings (autosheet only).

3 straight sheet stops (depressable).

3 centre crossbars in the trailer. (normally spaced 1 x 300mm from front, 1 x 300mm meter from rear, 1 x center of trailer (used for automatic sheet sytems)).

FINISHING

Axles and suspension with manufacturer’s black anti corrosive coating. Hanger brackets, ram painted with chassis.  Primer and top coats both 2 pack paint for both chassis and body. Temperature baked in oven for correct hardness.

Chassis paint colour: Grey* COLOURS CAN BE SALE OPTION VARIED

Body paint colour: Silver Grey

Sheet colour: Seawolf Blue (Grey)



DELIVERY

Ex Ridgmont, Bedfordshire or by negotiation.

SALES OPTIONS

1x Change to Hydraulic Rear Door from Barn Doors on Agricultural Trailer £7,500
1x Rims Alloy - Alcoa Dura-Bright (Offset 120) £2,135
1x Lights LED Reverse/Working Lamps (Pair) - Mounted behind Axles £212

TRAILER PRICE INCLUDING OPTIONS



Call 01525 872466 and ask for sales and quote: SN1177 or email sales@newtontrailers.com

WEIGHT AND DIMENSIONS AND OFFER

This sale offer is made under our Standard Sales Terms and Conditions enclosed or viewable on our website www.newtontrailers.com . All measurements quoted to manufacturers’ tolerances of ± 4%.

WARRANTY

1 year paint warranty. 1 years guarantee on construction faults and finish faults. Individual components such as Floor mechanism, axles, lights etc carry individual specific manufacturers’ warranty.

Knapen reserve the right to amend construction detail as necessary. Exeler Fahrzeugbau also reserve the right to amend construction detail as necessary.

PAYMENT

Nett cash at the finishing of the construction and before collection.

TRAILER PARTS AND SERVICE CALL 01525 872466, EMAIL parts@newtontrailers.com OR VISIT www.newtontrailers.com
