| Year | 2024 (new) |
|---|---|
| Chassis | STAS Konstructiewerkhuizen |
| Body | STAS Konstructiewerkhuizen |
| Volume | 68 CuYds (52.0m3) |
| Weight | 6250kgs |
| Stock No. | SN1711 |
|---|---|
| Type | Watertight Tipping Trailer |
| Chassis | STAS |
| Body | STAS |
| Model | AgroStar Hybrid N71222 |
| Year | 2024 (new) |
| Documents |  Parts Manual |
| eCO2 | 68500kg |
|---|---|
| Confidence | 1 (low) |
| Checked | 16/11/2022 |
| Weight | 6250kgs |
|---|---|
| Type | Alloy Straight Frame |
| Suspension | Air |
| Brakes | 22.50" SAF SBS Disc |
| ABS/EBS | WABCO 2S/2M |
| Wheels | Steel |
| Weigher | VWS |
| Axles | 3x SAF BI9 22S SBS |
| Axle 1 | Lift |
| Axle 2 | Fixed |
| Axle 3 | Fixed |
| Volume | 68 CuYds (52.0m3) |
|---|---|
| Door | Auto Inclined |
| Catwalk |  |
| Chassis | Customer Choice |
| Body | Customer choice |
| Cover | Customer choice Dawbarn Manual Roll Over Sheet Domed |

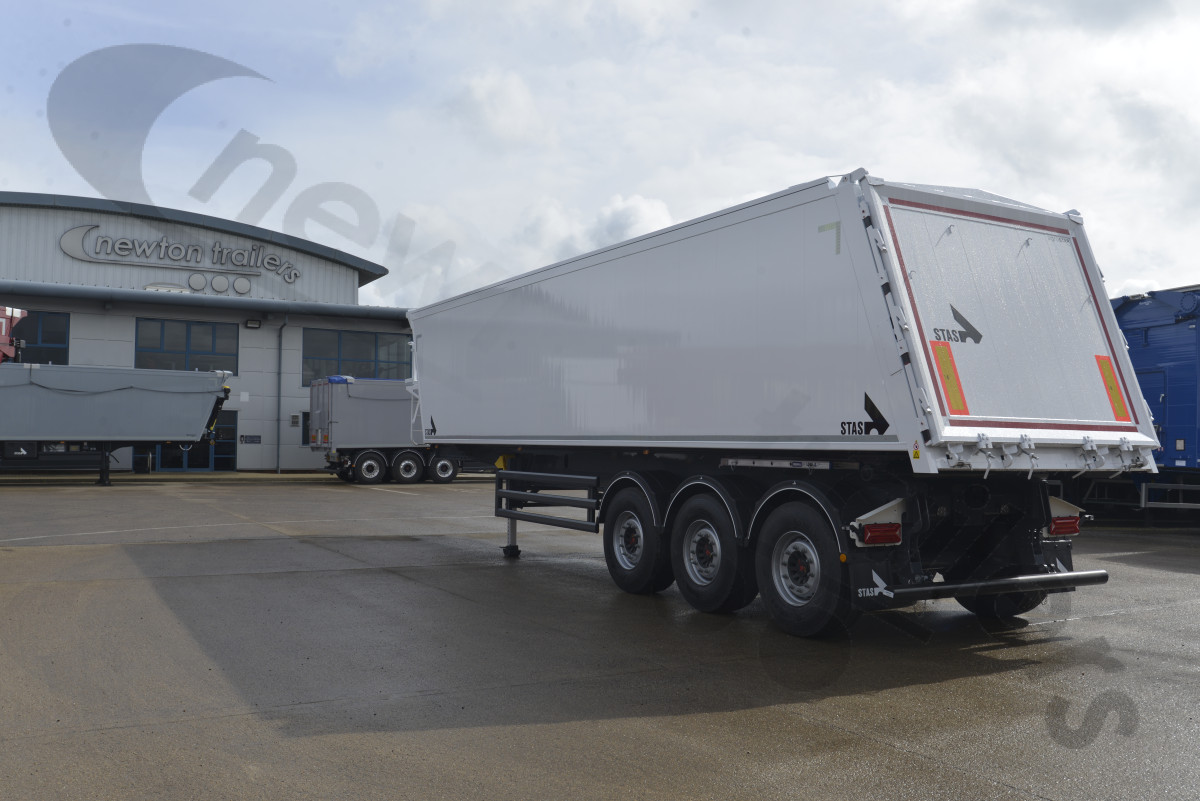

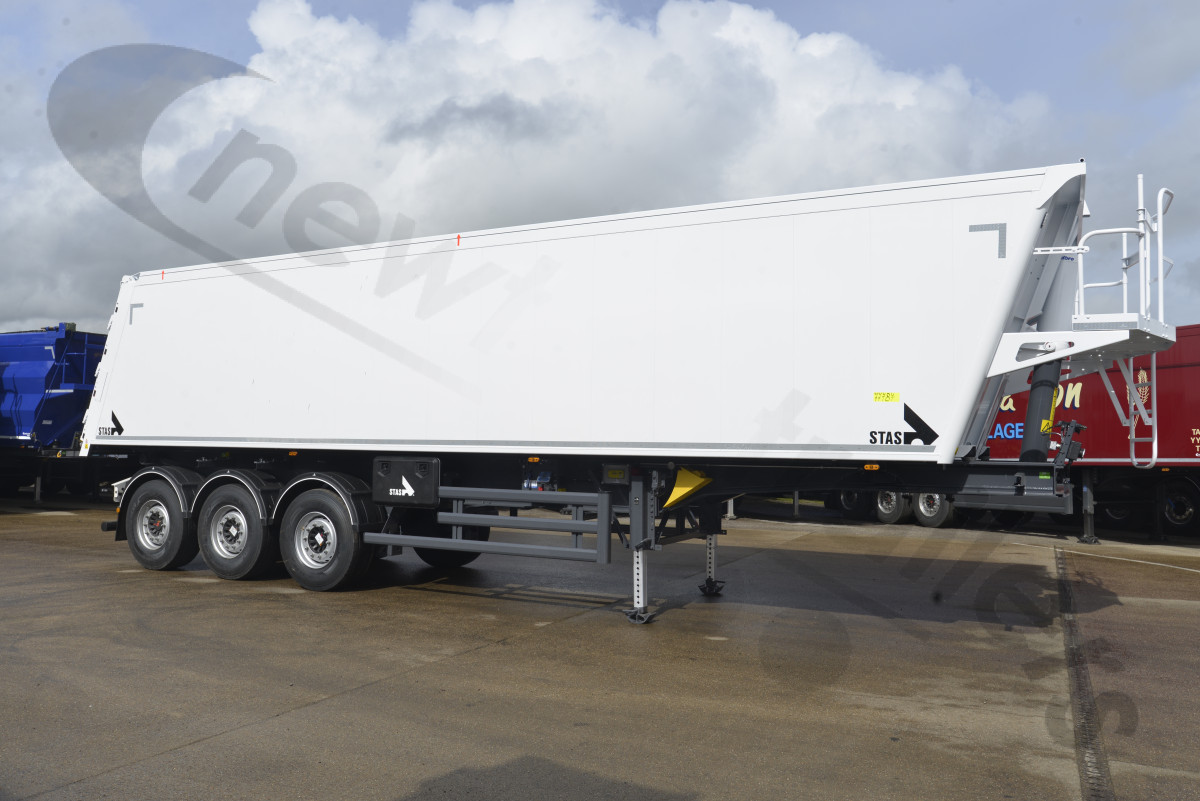

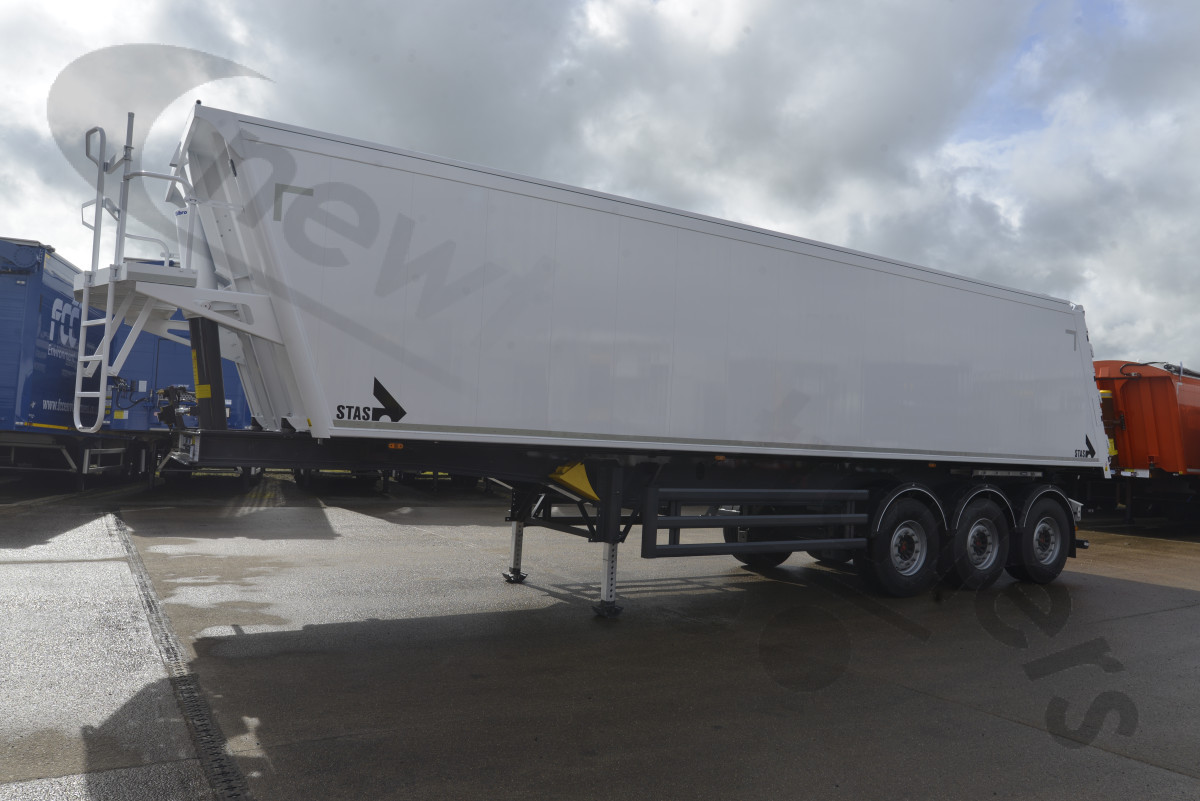

68 Cu Yard Plank Sided Watertight Body with Inclined Rear Watertight Door for Food waste and offals
Full Ultrastrong Aluminium chassis on 1400 mm beam centers straightframe
Triaxle on SAF Axles on full air suspension
Front Lift Axle - auto lift auto drop
Jost Manual Landing Legs - saving 80 kgs
Steel Rims
VWS weigher with chassis mounted readout
600 mm wide plank with robot welding.

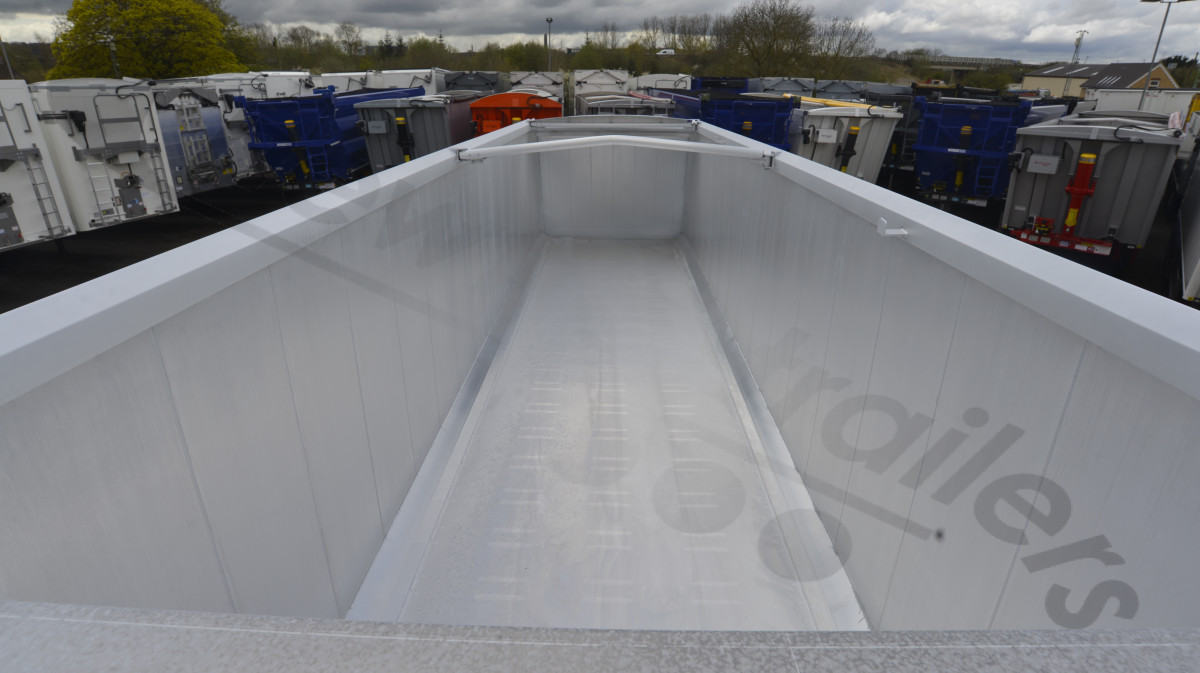

6 mm ultrahard floor alloy floor single piece full length with 24 cross bearers.
Surge plates front and rear

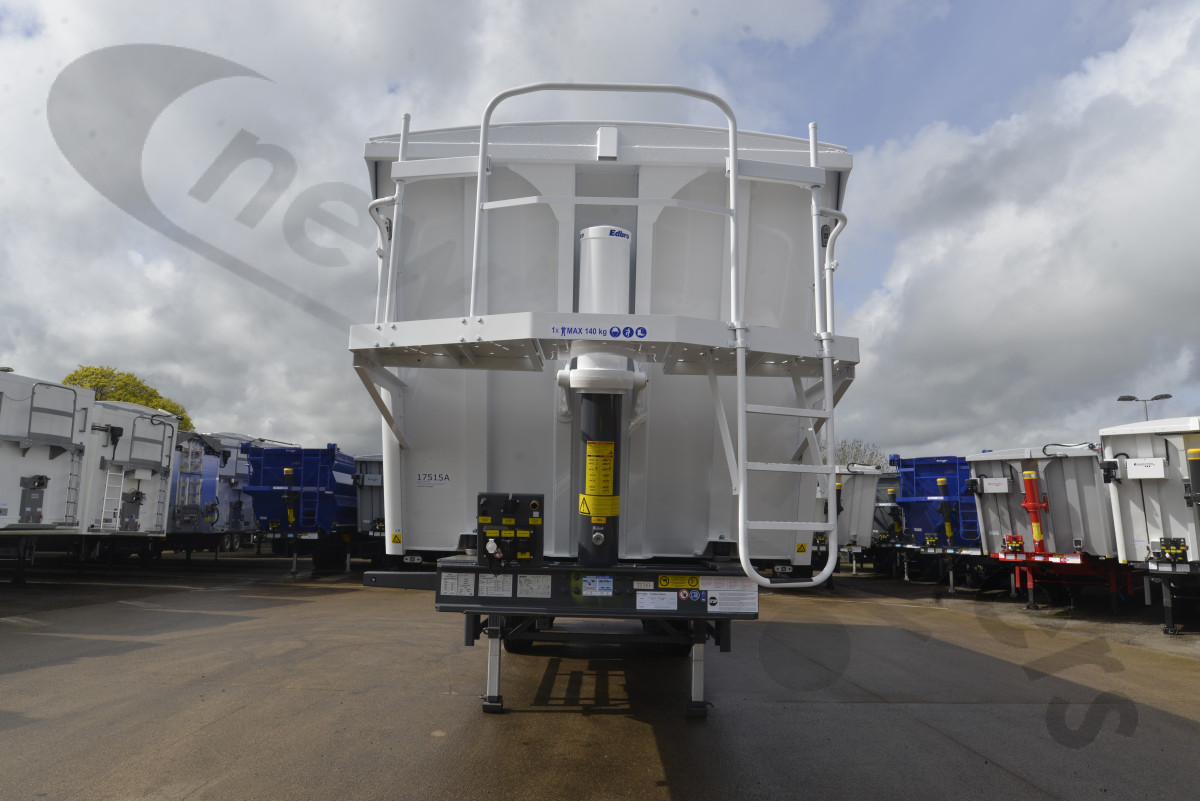

Catwalk
Painted body and painted chassis

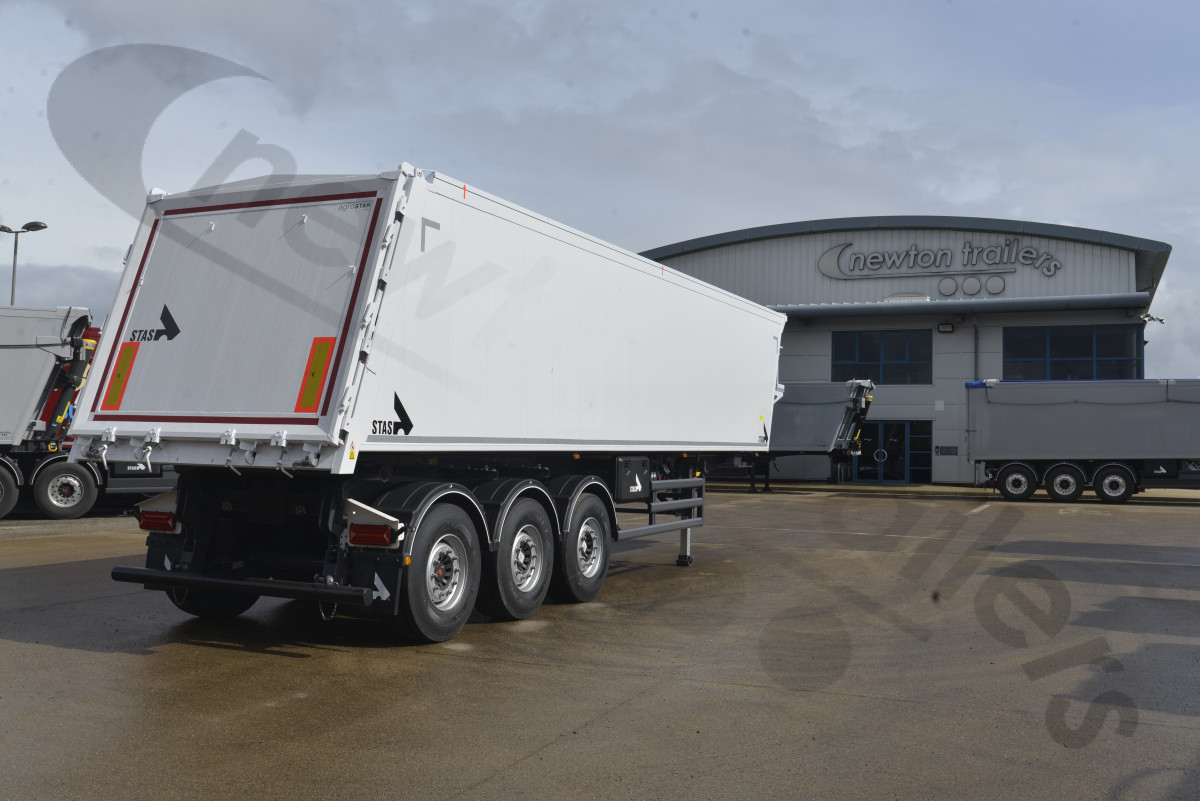

Leakproof rear door inclined with hydraulic locking mechanism on the left and right side. Pneumatic locking system on the bottom (two way pressure system). Oil pump for hydraulic locking is fitted on the UK driver side. 20 degree inclined rear door. Rubber sealed (special extra strong rubber single piece water tight)
4 closing hooks on the bottom with handle on driver side at the front side of the chassis for final safe door release.
Manual Or Dawbarn Automatic Roll Over Sheet with Remote Control
Click on the link to find out how this STAS Watertight works! https://youtu.be/tFhLbB0h8wg
68 Cu Yard Plank Sided Watertight Body with Inclined Rear Watertight Door for Food waste and offals
Full Ultrastrong Aluminium chassis on 1400 mm beam centers straightframe
Triaxle on SAF Axles on full air suspension
Front Lift Axle - auto lift auto drop
Jost Manual Landing Legs - saving 80 kgs
Steel Rims
VWS weigher with chassis mounted readout
600 mm wide plank with robot welding.
6 mm ultrahard floor alloy floor single piece full length with 24 cross bearers.
Surge plates front and rear
Catwalk
Painted body and painted chassis
Leakproof rear door inclined with hydraulic locking mechanism on the left and right side. Pneumatic locking system on the bottom (two way pressure system). Oil pump for hydraulic locking is fitted on the UK driver side. 20 degree inclined rear door. Rubber sealed (special extra strong rubber single piece water tight)
4 closing hooks on the bottom with handle on driver side at the front side of the chassis for final safe door release.
Manual Or Dawbarn Automatic Roll Over Sheet with Remote Control
Click on the link to find out how this STAS Watertight works! https://youtu.be/tFhLbB0h8wg
