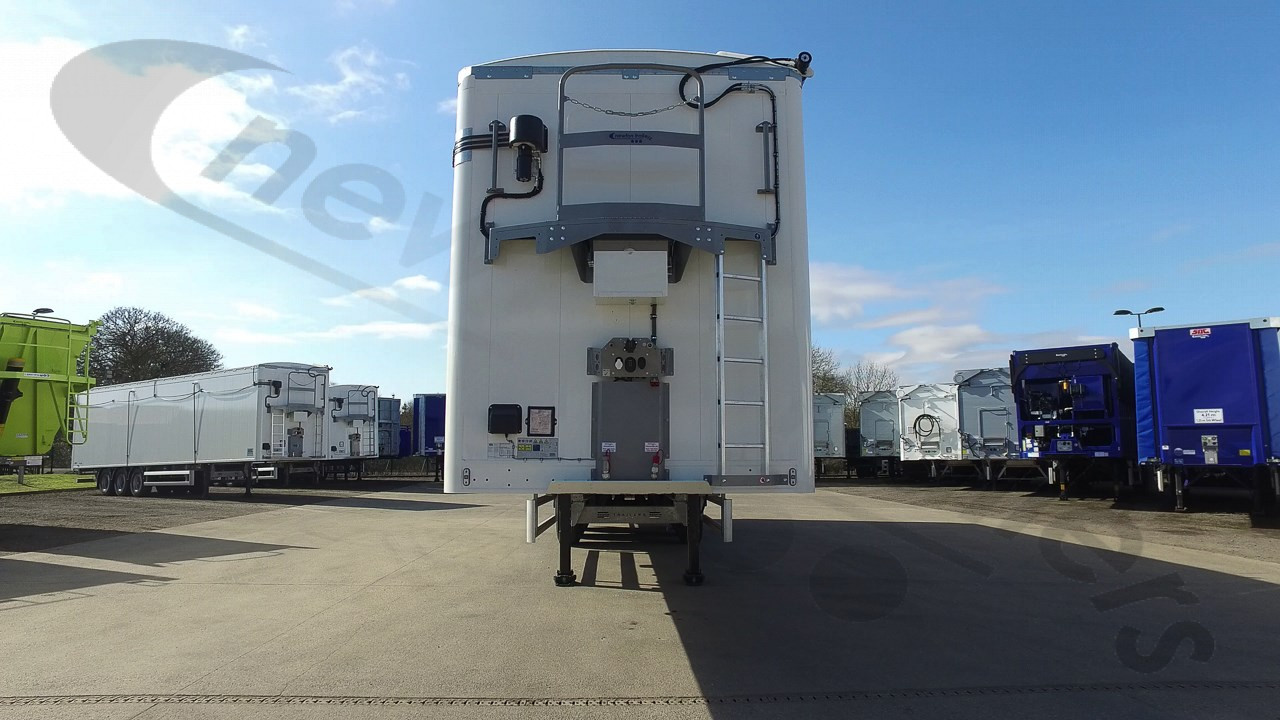

Recycling Moving Floor Trailer

Year 2025 (new)
Chassis Knapen Trailers BV.
Body Knapen Trailers BV.
Volume 127 CuYds (97.1m3)
Weight 9640kgs

Full Specifications

Specifications

Chassis:

Weight 9640kgs
Type Steel Sub-Frame
Suspension Air
Brakes 22.50" BPW Drum
ABS/EBS WABCO EBS-E
Wheels Steel
Axles 3x BPW Eco Plus

Body:

Volume 127 CuYds (97.1m3)
Door Barn Door 50:50
Catwalk ./
Floor System Cargo CF500SL-C
Floor Slats 15x 22mm XHDI
Floor Parts XHDI
Headboard Moving
Chassis Galvanised
Body RAL 9010 White
Cover Mid Blue Dawbarn Hydraulic Roll Over Sheet Hydroclear
Specifications

Parts Manual


For a printable parts manual for this trailer click below


Parts Manual

Description

Knapen RECYCLING XHDI Waste Moving Floor

Full Description

Description

Knapen RECYCLING Waste Moving Floor

This is our RECYCLING Waste moving floor product. Floors are definitely a case of 'Horses for Courses'. Choose the right spec trailer for the work you do. We have optimised this RECYCLING trailer to take abuse at the heavier end of the market. It has features that move it up from a BIOMASS spec into the more difficult products you might carry when RECYCLING. The chassis and sidewall construction is a culmination of 30 years experiecnce building for the Eastern European waste sector at 55 tonnes.  The floor is the XHDI - extra heavy duty impact system - will take larger lumps - more abrasive materials - larger wood items, black bag and household recycling products. Though not recommended for everyday work on the landfill (we do the Knapen Heavy Duty Waste for that) - it will withstand some landfill when the MERF occasionally breaks down. This trailer has a large steel box section bolted to the of all four sides of the box and can take those knocks that inevitably come from loading shovels. other sizes are available. Too heavy for you then choose the BIOMASS spec Knapen, not strong enough then choose the Knapen Heavy Duty waste trailer

127 cuyd 4.2m over the side

K100 HDX Subframe/Chassis with 8 additional cross-members and all cross-members thicker by design than STANDARD & BIOMASS floors. This Subframe/chassis was originally designed to cope with the heavy use and poor roads of the Baltic states. It features a Heavy Duty Steel lead up plate and Kingpin rated at 18 tonnes.

Cargo Floor 15 plank XHDI (Extra Heavy Duty Impact) system. 10mm - 22mm of aluminium on the planks

BPW Axles and BPW Drum brakes

Galvanised chassis with 10 year anti corrosion warranty

6 meters of 2 m full height 4 mm wear plates and 7 meters of 1 m height 4 mm wear plates

Steel capped top rails 600 mm x 600 mm x 6 mm steel box capping both sides, front and rear attached by tabs and bolts.

Extra heavy duty roof supports

Dawbarn Hydroclear automatic sheet system

Moving internal headboard

Towing eye in case you have been a bit cheeky

Rear door 50:50 split with double locks per door (hydraulic door variant available to order) with an air safety door lock

Doube front catwalk

Knapen Waste Specification moving Floor
