Hire New 2024 Knapen Side Door Moving Floor
360 view Click for 360 view
360 View
Hire New 2024 Knapen Side Door Moving Floor
Hire New 2024 Knapen Side Door Moving Floor
YouTube Video
Video
Hire New 2024 Knapen Side Door Moving Floor
Hire New 2024 Knapen Side Door Moving Floor

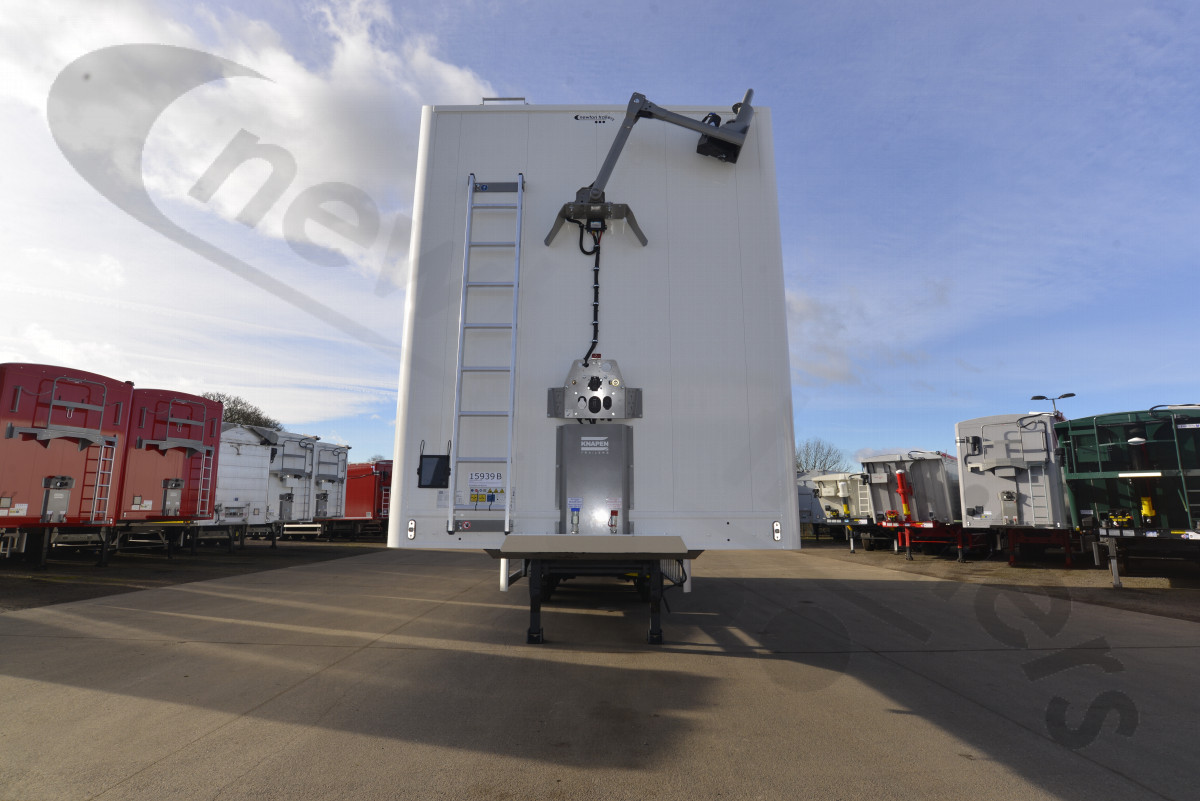

Photo 1
Hire New 2024 Knapen Side Door Moving Floor
Hire New 2024 Knapen Side Door Moving Floor

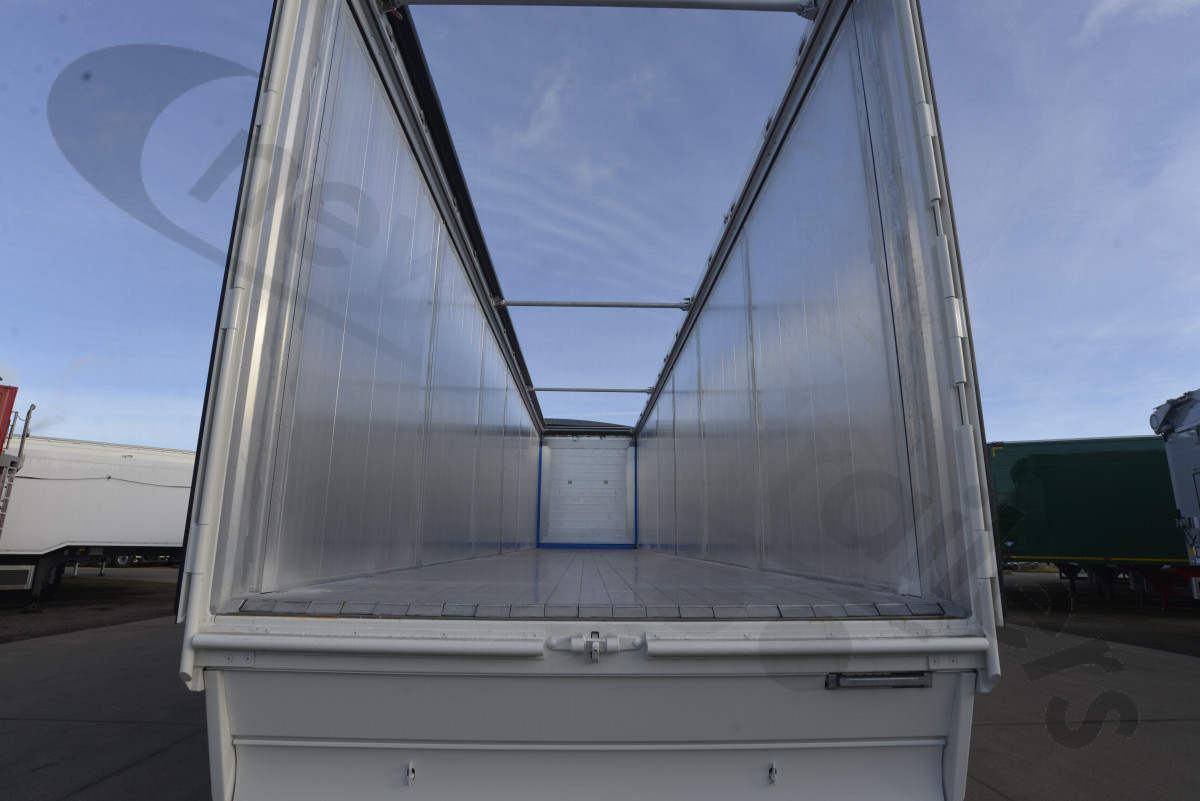

Photo 2
Hire New 2024 Knapen Side Door Moving Floor
Hire New 2024 Knapen Side Door Moving Floor

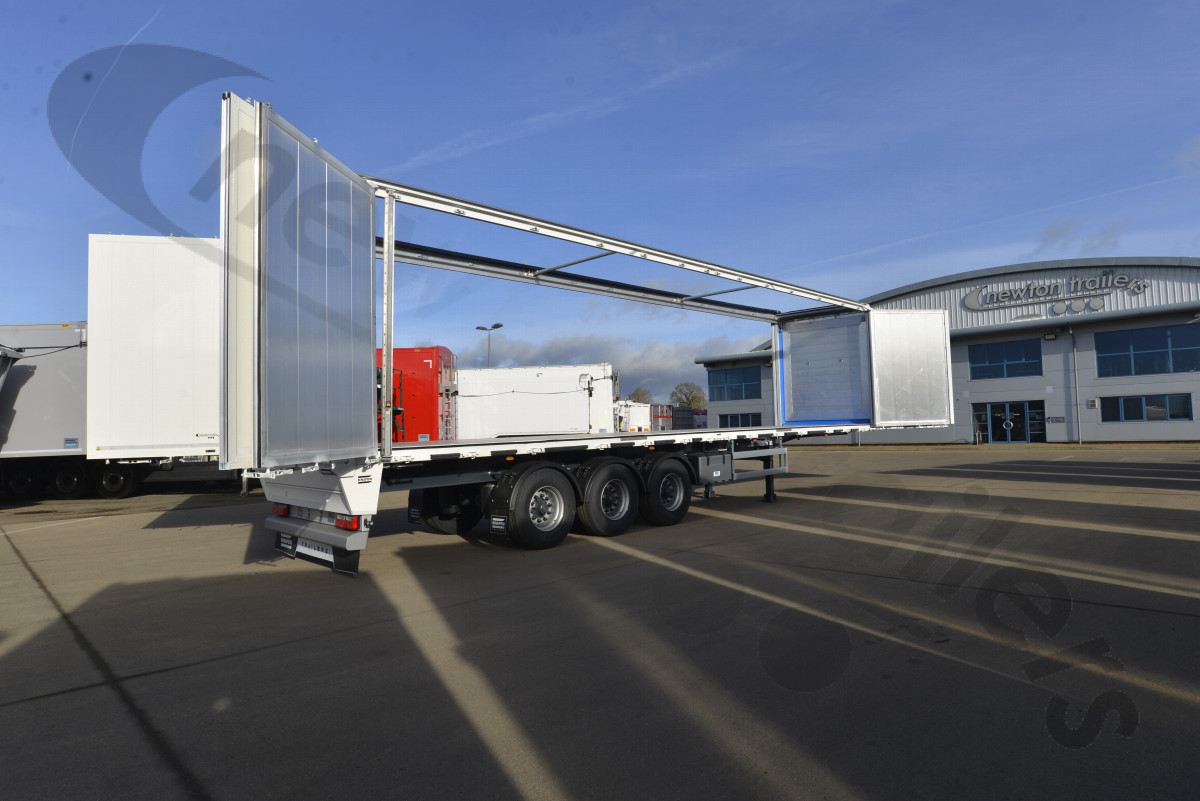

Photo 3
Hire New 2024 Knapen Side Door Moving Floor
Hire New 2024 Knapen Side Door Moving Floor

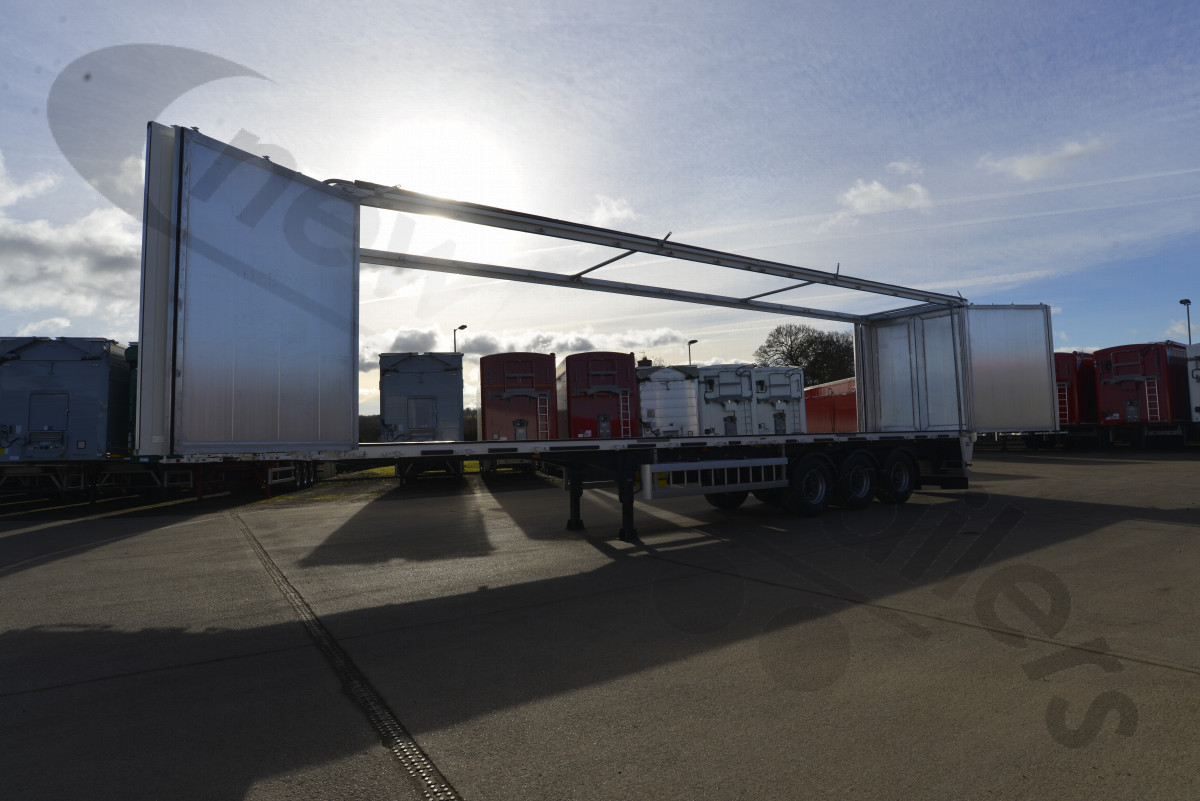

Photo 4
Hire New 2024 Knapen Side Door Moving Floor
Hire New 2024 Knapen Side Door Moving Floor

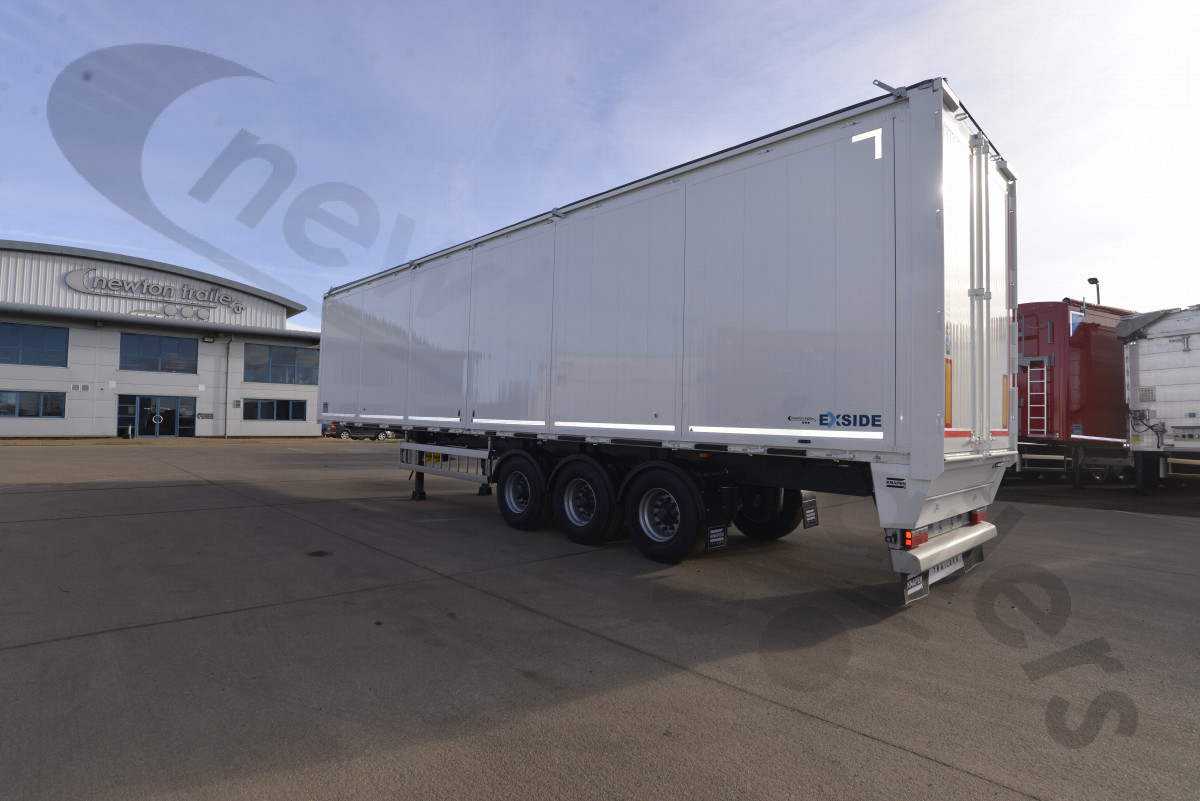

Photo 5

Side Door Moving Floor

Year 2024 (new)
Chassis Knapen Trailers BV.
Body Knapen Trailers BV.
Volume 133 CuYds (101.7m3)
Weight 9200kgs

Full Specifications

Specifications

Chassis:

Weight 9200kgs
Type Steel Straight Frame
Suspension Air
Brakes 0.01" BPW Drum
ABS/EBS WABCO EBS-E
Wheels Steel
Axles 3x BPW Eco Drum

Body:

Volume 133 CuYds (101.7m3)
Door Barn Door 50:50
Floor System Cargo CF500
Floor Slats 21x 10mm Smooth
Floor Parts 21 plank 10mm
Headboard Moving
Chassis RAL 7016 Grey
Body RAL 9010 White
Cover RAL 7016 Grey Knapen Electric Roll Over Sheet Flat
Specifications

Parts Manual


For a printable parts manual for this trailer click below


Parts Manual

Description

Knapen Full Side Door Walking Floor Trailer Knapen ExSIDE

Full Description

Description

Knapen Full Side Door Walking Floor Trailer (EXSIDE)

133 cuyd

Full length steel chassis

Body Opens both sides full length. There is a movable sliding post.

Internal aperture length is 12.900 m

The toprail lifts to give an extra 30 cm of under rail height. (optional extra)

Tri axle on air

BPW Axles and BPW drum brakes

21 plank x  10 mm Floor

Internal lashing rings

Knapen flat automatic sheet system

50:50 barn doors with air operated rear door safety lock

Unique wider extruded planks that are fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)

Full robot side welding, door welding and headboard welding for perfection every time

Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
Moving internal headboard
2 year paint warranty!
Wander lead remote control
Side impact bars and rear underrun bar
Toolbox

Reasons to Buy This Trailer

This trailer is unique in having a full aperture available for loading on both sides. So you can load long lengths from either side. So chipboard, insulation, pallets etc. Then load bulk in the other direction - wood chips, paper etc. There is not another trailer manufacturer that can do this!! More information on

https://www.knapen-trailers.eu/trailers/side-doors-exside

Description

Quote


For a printable quote for this trailer click below


Get a Quote


Description

Knapen Full Side Door Walking Floor Trailer (EXSIDE)

133 cuyd

Full length steel chassis

Body Opens both sides full length. There is a movable sliding post.

Internal aperture length is 12.900 m

The toprail lifts to give an extra 30 cm of under rail height. (optional extra)

Tri axle on air

BPW Axles and BPW drum brakes

21 plank x  10 mm Floor

Internal lashing rings

Knapen flat automatic sheet system

50:50 barn doors with air operated rear door safety lock

Unique wider extruded planks that are fully seam welded (many competitors reduce cost by only stitch welding - not advised in plank side construction!)

Full robot side welding, door welding and headboard welding for perfection every time

Front headboard sidewall cast alloy joiners which prevent the headboard from splitting away
Moving internal headboard
2 year paint warranty!
Wander lead remote control
Side impact bars and rear underrun bar
Toolbox

Reasons to Buy This Trailer

This trailer is unique in having a full aperture available for loading on both sides. So you can load long lengths from either side. So chipboard, insulation, pallets etc. Then load bulk in the other direction - wood chips, paper etc. There is not another trailer manufacturer that can do this!! More information on

https://www.knapen-trailers.eu/trailers/side-doors-exside


Specifications

Chassis:

Weight 9200kgs
Type Steel Straight Frame
Suspension Air
Brakes 0.01" BPW Drum
ABS/EBS WABCO EBS-E
Wheels Steel
Axles 3x BPW Eco Drum

Body:

Volume 133 CuYds (101.7m3)
Door Barn Door 50:50
Floor System Cargo CF500
Floor Slats 21x 10mm Smooth
Floor Parts 21 plank 10mm
Headboard Moving
Chassis RAL 7016 Grey
Body RAL 9010 White
Cover RAL 7016 Grey Knapen Electric Roll Over Sheet Flat
