New 2025 Knapen Agricultural Moving Floor Trailer
360 view Click for 360 view
360 View
New 2025 Knapen Agricultural Moving Floor Trailer
New 2025 Knapen Agricultural Moving Floor Trailer
YouTube Video
Video
New 2025 Knapen Agricultural Moving Floor Trailer
New 2025 Knapen Agricultural Moving Floor Trailer
Photo 1
New 2025 Knapen Agricultural Moving Floor Trailer
New 2025 Knapen Agricultural Moving Floor Trailer
Photo 2
New 2025 Knapen Agricultural Moving Floor Trailer
New 2025 Knapen Agricultural Moving Floor Trailer
Photo 3
New 2025 Knapen Agricultural Moving Floor Trailer
New 2025 Knapen Agricultural Moving Floor Trailer
Photo 4
New 2025 Knapen Agricultural Moving Floor Trailer
New 2025 Knapen Agricultural Moving Floor Trailer
Photo 5

Agricultural Moving Floor Trailer

Year 2025 (new)
Chassis Knapen Trailers BV.
Body Knapen Trailers BV.
Volume 90 CuYds (68.8m3)
Weight 7525kgs

Full Specifications

Specifications

Chassis:

Weight 7525kgs
Type Alloy Sub-Frame
Suspension Air
Brakes 22.50" SAF SBS Disc
ABS/EBS WABCO EBS-E
Wheels Steel
Axles 3x SAF BI9 22S SBS
Axle 1 Lift
Axle 2 Fixed
Axle 3 Fixed

Body:

Volume 90 CuYds (68.8m3)
Door Barn Door 50:50
Catwalk ./
Floor System Cargo CF500SL-C
Floor Slats 21x 6mm Smooth
Floor Parts
Chassis Grey
Body Silver Grey
Cover Seawolf Blue (Grey) Dawbarn Hydraulic Roll Over Sheet Hydroclear
TASCC ./
Specifications

Parts Manual


For a printable parts manual for this trailer click below


Parts Manual

Description

Knapen Agricultural AD Plant Silage Bagged LIQUID-X-LINER Moving Floor Trailer

Full Description

Description

Knapen Agricultural AD Plant Silage Bagged LIQUID-X-LINER Moving Floor Trailer

Knapen manufacture a complete range of agricultural walking floors and moving floors aimed at the UK's agricultural sector.

Floors have the big stability advantage over tipping trailers on road and off road. They also have weight saving and volume gain

This is a very SPECIAL type of agricultural moving floor. It incorporates ALSO a large bagged tank that allows the removal of AD Plant liquid digestate. So you can go field to AD Plant with feedstock such as Maize and then fill up in 15 minutes and run back to field with digestate.

Can be supplied with powered dollys for use behind a T5 tractor in the field and flotation tyres. ALL homologated for the UK.

Ask and we can supply

11.220  meter total length (can be made longer if you wish)

96 cuyd plank sided body

Liquid volume: 26 cu meter

Pump speed 4,000 liters per minute

Tri axle on air with a front lift axle

SAF Disc Brake (Axle will dictate tyre size if running flotation)

TPRS Tyre Pressure Refill System - actively reinflates tyres
Steel rims

Moving internal headboard

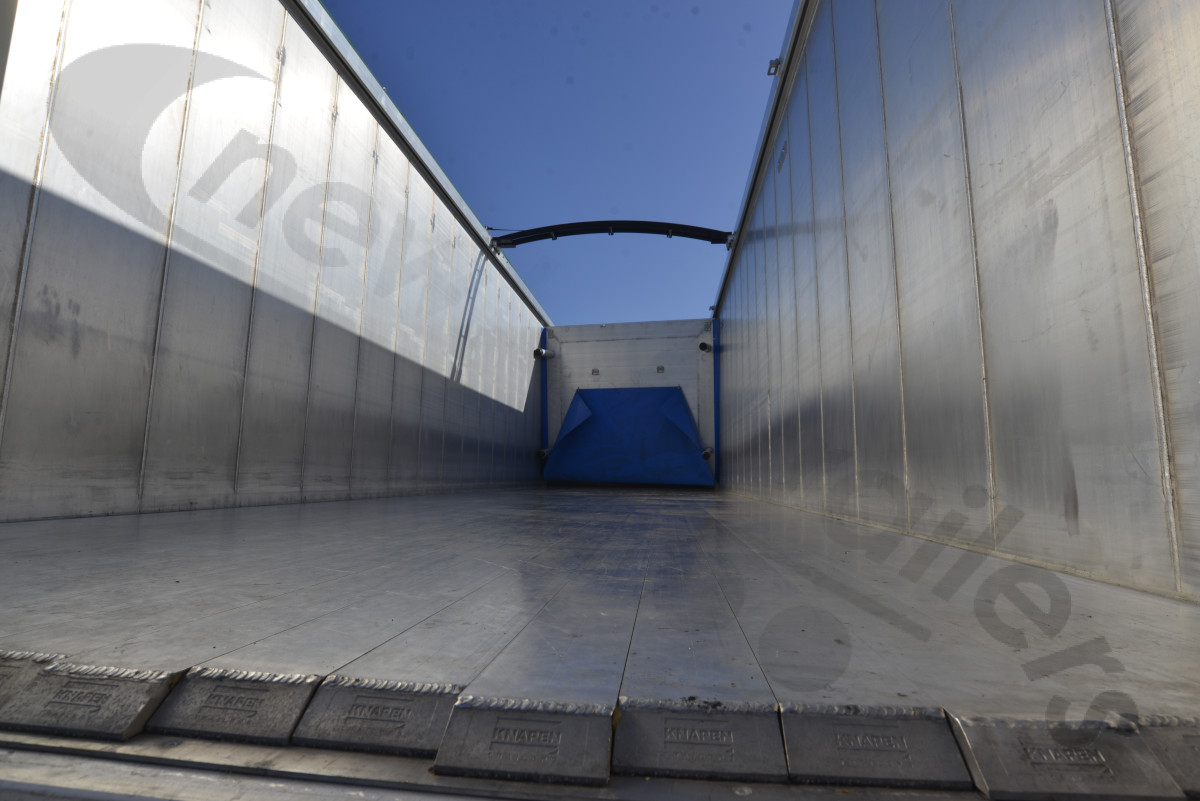

Cargo floor 21 plank x 6 mm aluminium floor system (could be 6 mm on agricultural only work).

Front Headboard Access Door (to assist cleaning out of front interior of trailer)

Wear Plates (small triangular 1000x 2000)

2 pairs of working lamps

Remote control for sheet, floor, working lamps

50:50 Barn doors with air safety catch

Dawbarn hydroclear automatic sheet system

OPTION FOR FLOTATION TYRES SUPPLIED

Knapen Agricultural Moving Floor For Sale; Knapen Agricultural Moving Floor Trailer For Sale; Knapen Moving Floor For Sale

Description

Finance Estimator


Own this Agricultural Moving Floor Trailer from £745.88 per week


Get An Estimate

Own from £745.88 per week*

Initial Payment


Finance Duration


Final Payment

Residual Value

£
Final Payment

Payments

per month
( per week)

Interest Rate

comparison rate
Flat Rate

Total Paid

(excluding initial)
interest

*this estimator is not an offer to finance

Finance

Quote


For a printable quote for this trailer click below


Get a Quote


Description

Knapen Agricultural AD Plant Silage Bagged LIQUID-X-LINER Moving Floor Trailer

Knapen manufacture a complete range of agricultural walking floors and moving floors aimed at the UK's agricultural sector.

Floors have the big stability advantage over tipping trailers on road and off road. They also have weight saving and volume gain

This is a very SPECIAL type of agricultural moving floor. It incorporates ALSO a large bagged tank that allows the removal of AD Plant liquid digestate. So you can go field to AD Plant with feedstock such as Maize and then fill up in 15 minutes and run back to field with digestate.

Can be supplied with powered dollys for use behind a T5 tractor in the field and flotation tyres. ALL homologated for the UK.

Ask and we can supply

11.220  meter total length (can be made longer if you wish)

96 cuyd plank sided body

Liquid volume: 26 cu meter

Pump speed 4,000 liters per minute

Tri axle on air with a front lift axle

SAF Disc Brake (Axle will dictate tyre size if running flotation)

TPRS Tyre Pressure Refill System - actively reinflates tyres
Steel rims

Moving internal headboard

Cargo floor 21 plank x 6 mm aluminium floor system (could be 6 mm on agricultural only work).

Front Headboard Access Door (to assist cleaning out of front interior of trailer)

Wear Plates (small triangular 1000x 2000)

2 pairs of working lamps

Remote control for sheet, floor, working lamps

50:50 Barn doors with air safety catch

Dawbarn hydroclear automatic sheet system

OPTION FOR FLOTATION TYRES SUPPLIED

Knapen Agricultural Moving Floor For Sale; Knapen Agricultural Moving Floor Trailer For Sale; Knapen Moving Floor For Sale
